Профессиональный сетевой стоечный шкаф KD серии C представляет собой напольную 19-дюймовую стойку, предназначенную для центров обработки данных, серверных комнат, телекоммуникационных помещений и корпоративных сетевых приложений. Благодаря разборной конструкции CKD, ширине 600 мм и глубине 600 мм шкаф обеспечивает эффективную транспортировку, гибкую установку и надежную защиту оборудования. Серия C, доступная в конфигурациях 18U, 27U, 37U и 42U, представляет собой профессиональное стоечное решение для коммутаторов, патч-панелей, сетевого оборудования и сопутствующих аксессуаров.
| Professional Network Deployment Designed for standard 19-inch network equipment in telecom rooms, server rooms and commercial IT infrastructure. |
CKD Knock-Down Structure CKD packing parts help improve transportation efficiency and support convenient storage and project deployment. |
| Flexible Door Options Tempered glass door and mesh door options are available to meet different security and ventilation requirements. |
Ventilation and Maintenance Top and bottom ventilation, removable side panels, cooling fan support and adjustable feet improve daily operation. |
|
Optimized Ventilation Structure
Designed with top and bottom ventilation openings and optional cooling fan installation to improve airflow circulation for network and IT equipment.
|

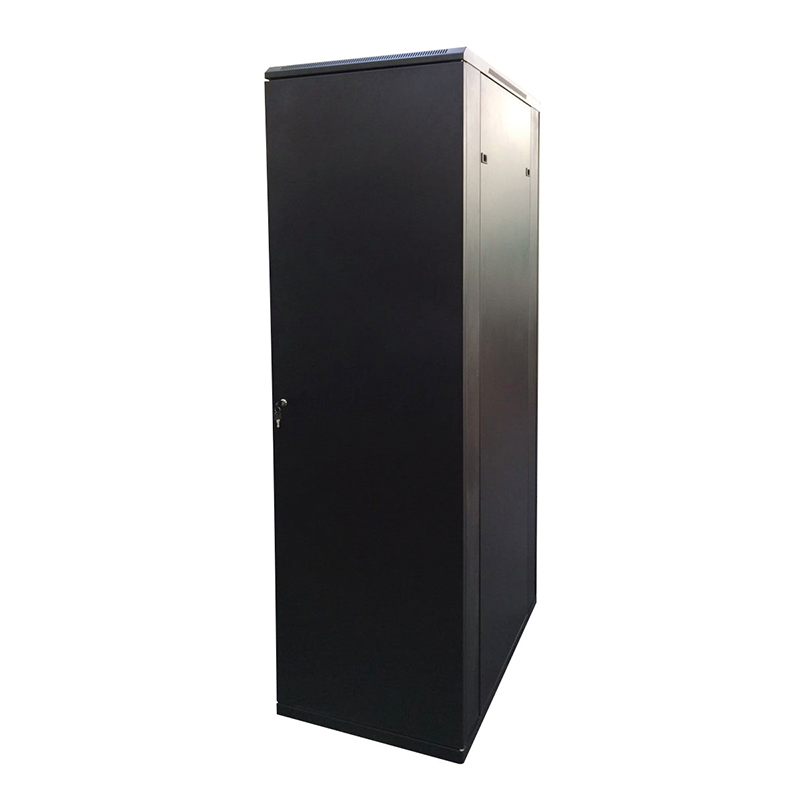

Reinforced Rear and Side Panels
Strengthened rear panel and side panel construction improve cabinet rigidity and provide enhanced protection for installed equipment.
|

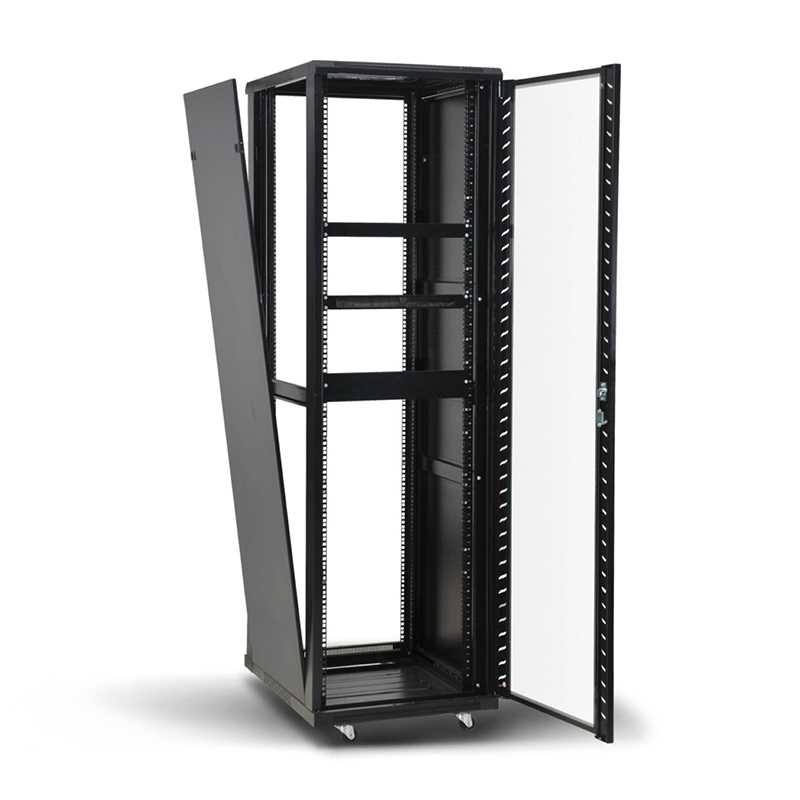

Quick-Release Panels and Reinforced U Rails
Removable side panels simplify installation and maintenance, while reinforced U-marked rails support standard 19-inch equipment.
|
| Product Series | C Series Professional KD Network Rack Cabinet |
| Structure | CKD Knock Down Floor Standing Cabinet |
| Capacity Options | 18U 27U 37U 42U |
| Width | 600 mm |
| Depth | 600 mm |
| Door Options | Tempered Glass Door or Mesh Door Optional |
| Side Panel | Removable Side Panels |
| Ventilation | Top and Bottom Ventilation with Cooling Fan Support |
| Mounting Rail System | Reinforced 19 Inch U-Marked Mounting Rails |
| Base Support | Castors and Adjustable Feet |
| Color Options | Black RAL9005 Grey RAL7035 White RAL9010 |
| Optional Accessories | Fixed Shelf Cooling Fan Fan Tray Sliding Shelf Cable Brush PDU |
| Part Number | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) | CKD Packing Parts |
|---|---|---|---|---|---|
| EH-NC-C-18W6D6 | 18U | 600 | 600 | 900 | 3 |
| EH-NC-C-27W6D6 | 27U | 600 | 600 | 1300 | 3 |
| EH-NC-C-37W6D6 | 37U | 600 | 600 | 1750 | 3 |
| EH-NC-C-42W6D6 | 42U | 600 | 600 | 2000 | 3 |
Типы дверей, цвета и дополнительные аксессуары могут быть выбраны в соответствии с требованиями проекта.
