| Тип упаковки: | Экспортная коробка KD Flat-Pack с защитной пеной |
|---|

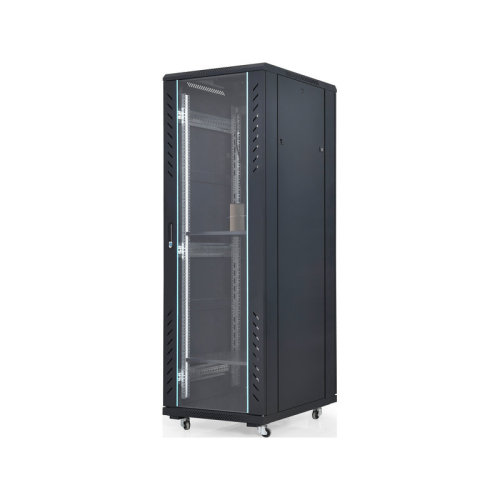

Сетевой серверный шкаф Flat-Pack серии A устанавливает глобальный отраслевой стандарт для ИТ-корпусов с высокой плотностью размещения и безопасной аппаратной архитектуры. Эта структурная стойка, оснащенная усовершенствованной модульной конструкцией KD (Knock-Down), специально спроектирована для оптимизации объема контейнеров для морских перевозок, сокращения затрат на морские перевозки и минимизации накладных расходов на локальном складе. Изготовленный из холоднокатаной стали премиум-класса SPCC с грузоподъемностью до 1000 кг, он обеспечивает исключительную поддержку тяжелых условий эксплуатации и встроенную раму для безошибочной сборки на месте. Он служит идеальным профессиональным решением для развертывания современных центров обработки данных, компьютерных залов и телекоммуникационных узлов.
|
Freight Optimization
Flat-pack design reduces logistics volume by up to 60%, significantly lowering ocean freight costs, reducing transit storage footprint, and improving regional distribution efficiency.
|
Industrial Static Loading
Reinforced structural multi-folded frames provide a certified static loading capacity of up to 1000kg, easily accommodating high-density server clusters and blade systems safely.
|
|
Rapid Modular Assembly
Precision-engineered component interlocking mechanisms allow for exceptionally swift, hassle-free onsite structural integration, radically dropping local installation technician hours.
|
Advanced Thermal Pathway
Equipped with high-performance perforated air convection ventilation configurations and multi-fan extraction integration potential to guarantee optimized operating environments for critical servers.
|

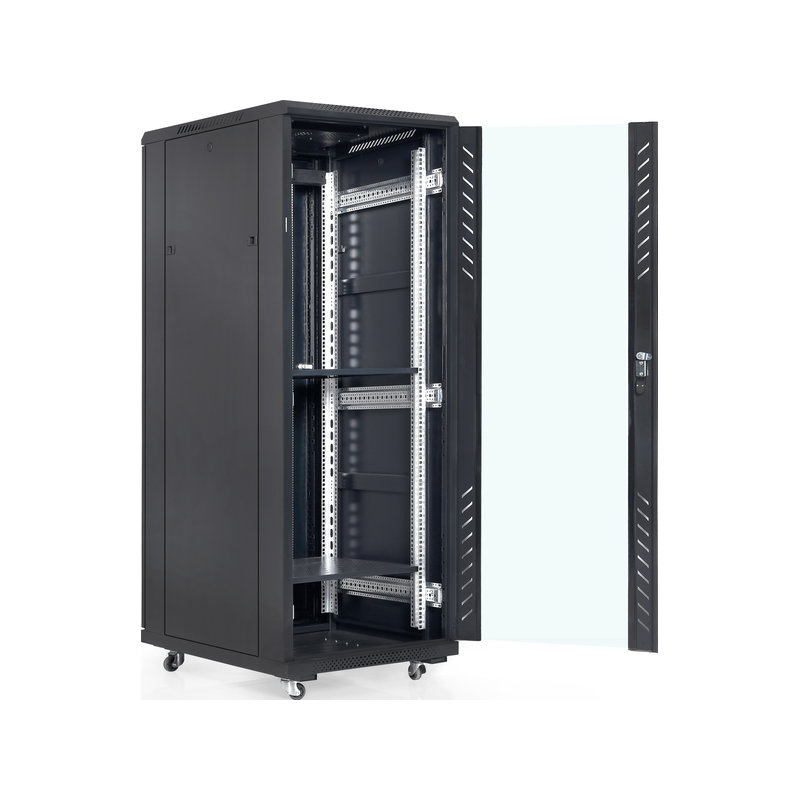

Heavy-Duty Galvanized Zinc U-Rails
Engineered with premium 2.0mm thickness galvanized zinc vertical mounting columns featuring clean silk-screened U-height markings, ensuring long-term wear resistance and structural hardware alignment.
|

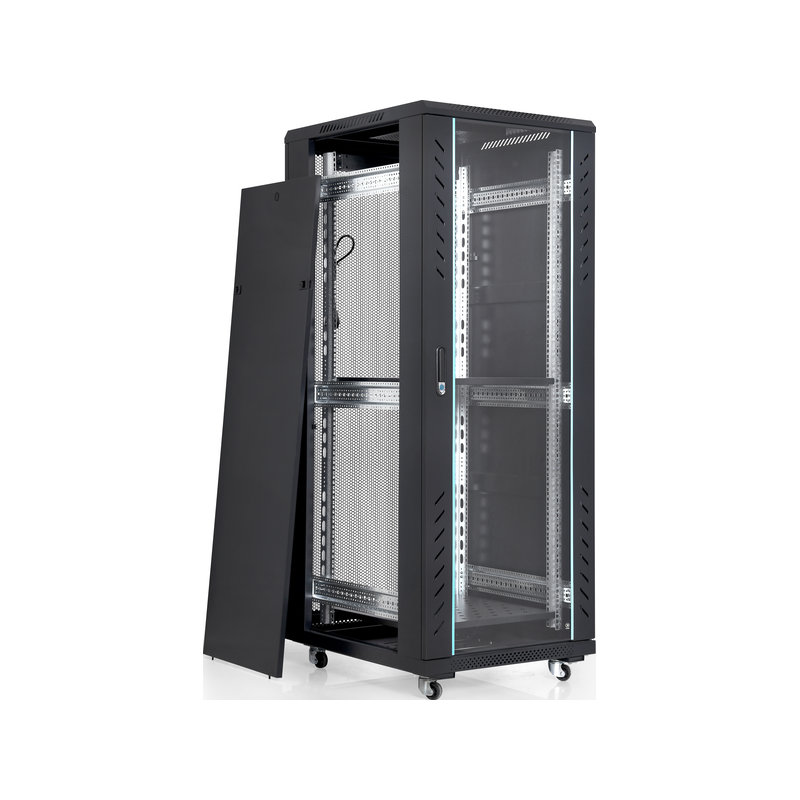

Quick-Release Side Panels
Features a 1.0mm thickness dual-split removable side maintenance panel layout fitted with user-friendly quick-release latches and integrated locks, providing easy component access and hardware security.
|

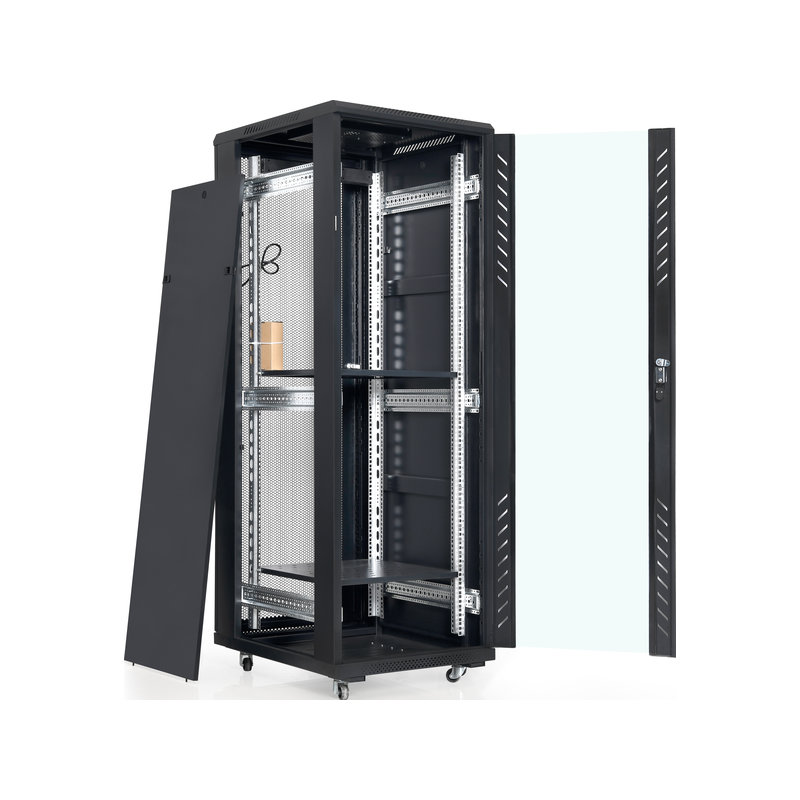

Premium Ventilation Structure
Designed with high-perforation continuous air convection ventilation architectures on both front and rear chassis boundaries, substantially optimizing cooling distribution and passive heat dispersion.
|
| Chassis Architecture | KD (Knock-Down) Modular Flat-Pack Standalone Structural Design |
| Material Profile | High-tensile SPCC premium cold-rolled steel plate formulation |
| Steel Thickness | Main Frame: 1.5mm | 19" Rails: 2.0mm | Side Panels: 1.0mm | Shelves: 1.2mm |
| Vertical Mounting Grid | Anti-wear galvanized zinc-plated columns with clear silk-screened U markers |

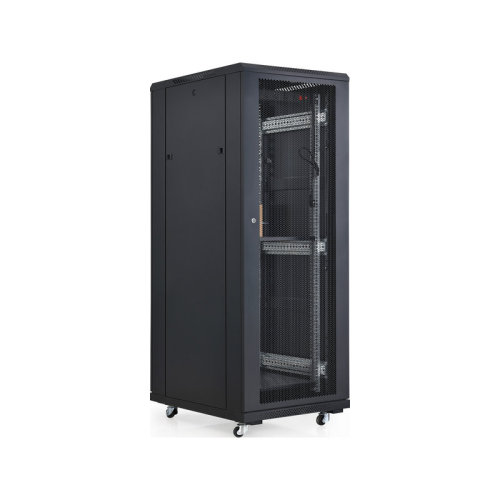

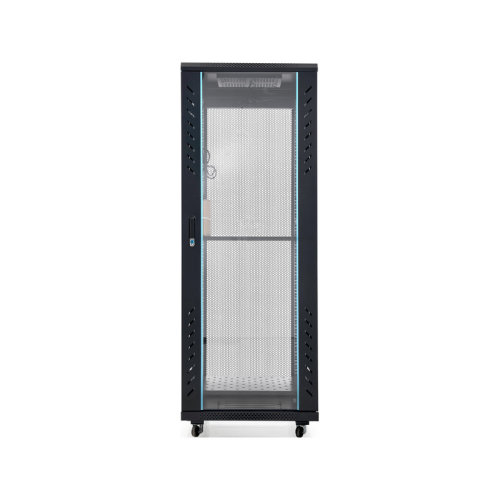

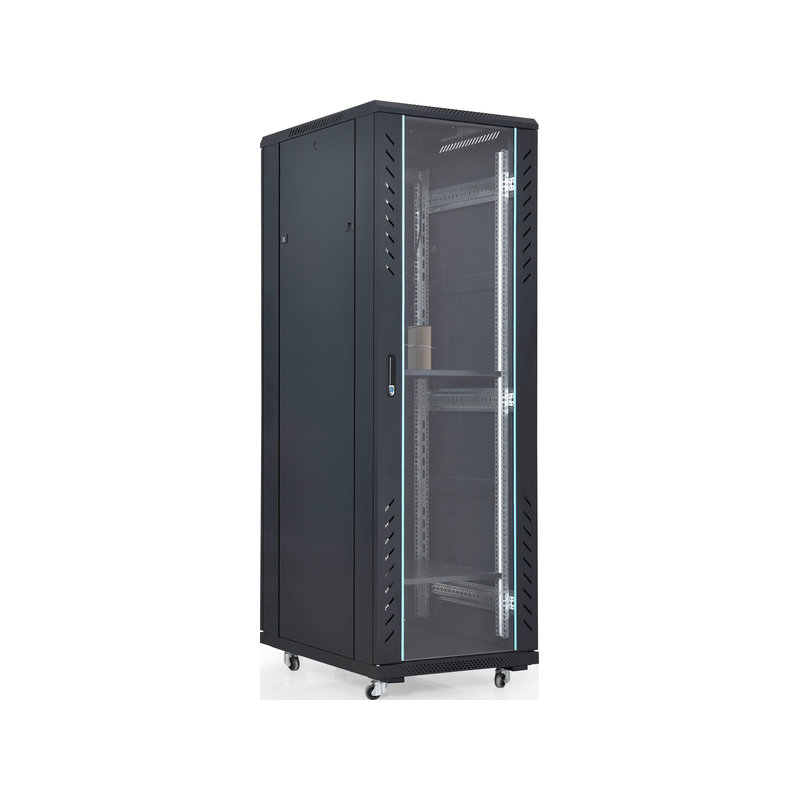

| Door Configurations | Perforated/curved glass front door and double-opening rear door options |
| Surface Management | Multi-stage degreasing, pickling, phosphating, and powder coated finish (RoHS) |
| Static Load Rating | Certified heavy-duty engineering supporting up to 1000 kg (2204 lbs) |
| Cable Entry Management | Adjustable cable routing channels located on top cover and base panel areas |
| Mobility Setup | Equipped with heavy-duty 2" castor wheels and solid supporting leveling feet |
| Protection Compliance | IP20 protection tier compliant, optimized for internal controlled server rooms |
| Part Number | Capacity | Size (mm) | CKD Pack | ||
|---|---|---|---|---|---|
| Width | Depth | Height | |||
| EH-SR-A-24W6D8 | 24U | 600 | 800 | 1200 | 3 Pack |
| EH-SR-A-42W6D8 | 42U | 2000 | |||
* Размеры стойки (комбинация ширины и глубины) могут быть полностью настроены в соответствии с требованиями конкретного проекта и стандартами установки сети.
