| option |
| Тип упаковки: | Полностью собран перед отправкой. |
|---|
Сборный сетевой серверный шкаф серии TB 18U — это высокозащищенное компактное напольное решение, предназначенное для периферийных вычислительных сред, ИТ-систем филиалов и инфраструктуры среднего предприятия. Эта стойка высотой 18U, изготовленная из холоднокатаной стали премиум-класса SPCC и оснащенная усиленными вертикальными монтажными колоннами толщиной 2,0 мм, обеспечивает невероятную структурную устойчивость. Благодаря оптимальной мультивентиляционной конструкции с сетчатой задней дверью и двойной передней дверью, она гарантирует стабильный температурный контроль для критически важного 19-дюймового оборудования. Его съемная конструкция рамы позволяет быстро интегрировать его на месте, сохраняя при этом значительно меньший объем доставки.
| Ready for Fast Deployment The floor-standing 18U cabinet arrives pre-assembled from our factory, minimizing on-site logistics and dramatically reducing standard equipment deployment timelines. |
Upgraded TB Rigid Framework Engineered with sturdy 2.0mm mounting columns and 1.0mm cross-structural sections to deliver a space-efficient yet heavy-duty housing for networking hardware. |
| Dual Door Thermal Design Combines a crisp tempered glass front door with a high-airflow ventilated mesh rear door, providing excellent front visual monitoring and efficient passive cooling heat dissipation. |
Enhanced Security Controls Equipped with fully lockable, quick-release side walls to provide technicians with rapid horizontal access while strictly preventing unauthorized hardware manipulation. |

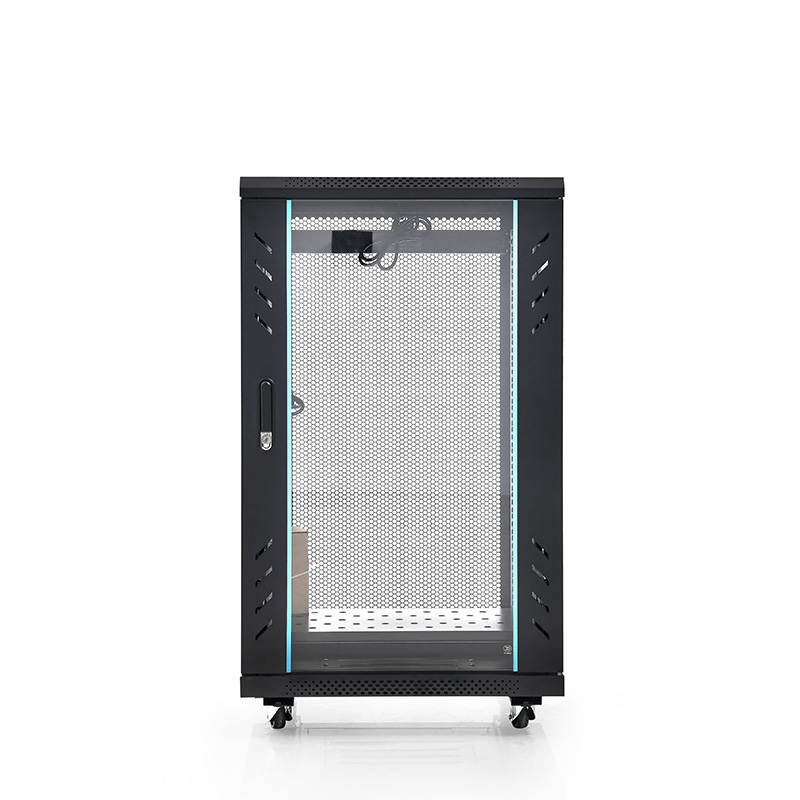

Glass Front & Mesh Rear Door
Integrates a high-clarity tempered glass front door with a high-ventilation rear mesh profile, ensuring effortless visual inspections and continuous thermal regulation.
|

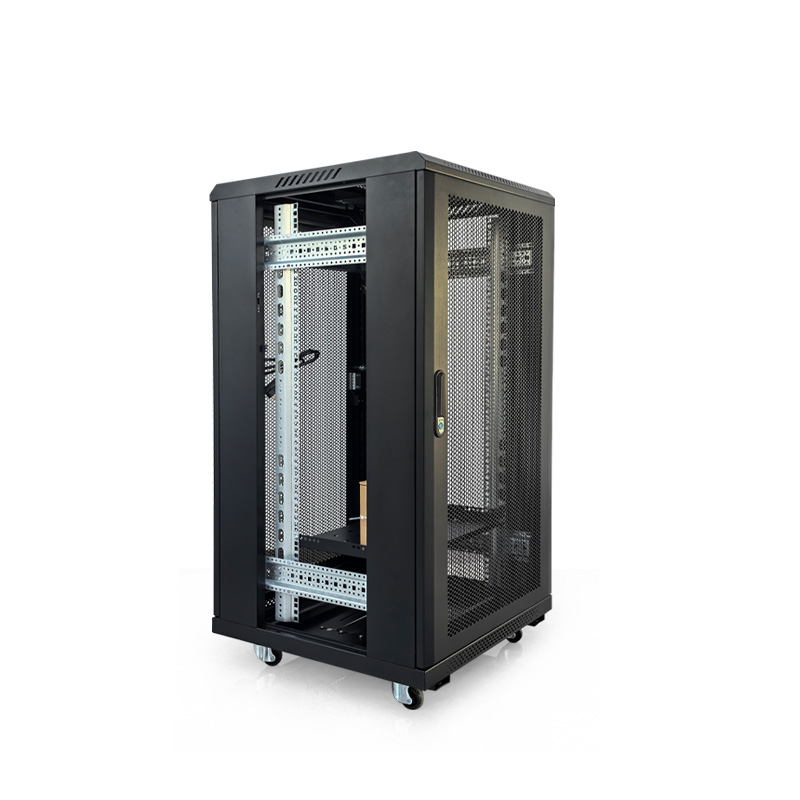

Quick-Release Lockable Side Panels
Convenient detachable side walls integrated with high-security locks provide rapid post-installation technical access while restricting general physical entry.
|

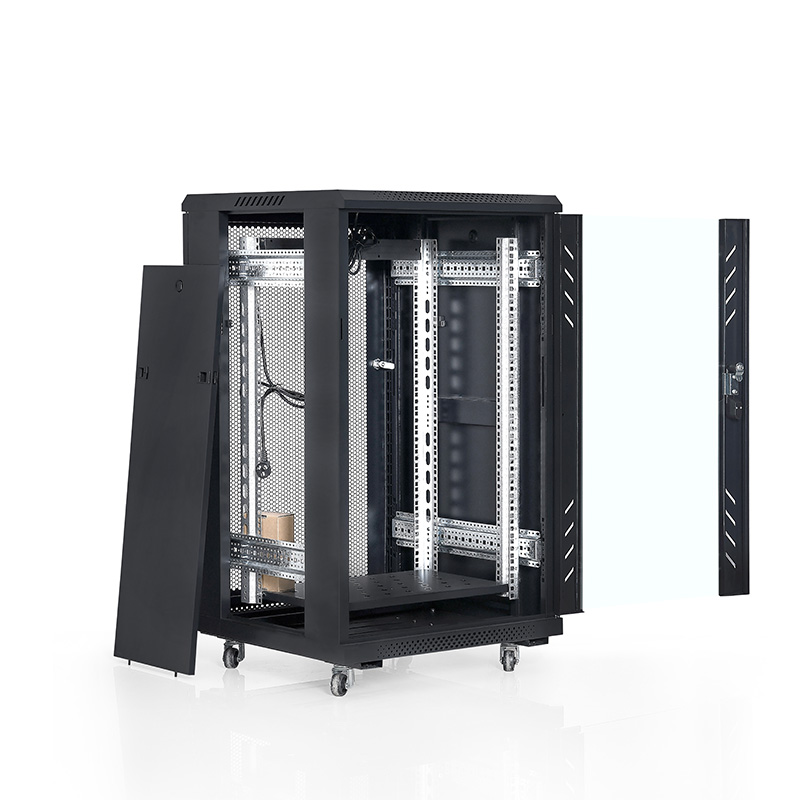

Reinforced Rails & Clean Cabling
Heavy-duty 2.0mm inner U-marked rails work in tandem with engineered laser-cut entry points, optimizing high-density network cable grouping layouts.
|
| Product Series | TB Series Assembled Network Server Cabinet |
| Capacity | 18U |
| Cabinet Size | W600 x D[600/800/900/1000] x H1000 mm |
| Structure | Factory Pre-Assembled Floor Standing Cabinet (Detachable Structure) |
| Material | SPCC Quality Cold Rolled Steel |
| Mounting Column | 2.0 mm |
| Mounting Cross Member | 1.0 mm |
| Other Material Thickness | 1.0 mm |
| Front Door Options | Tempered Glass Door or High-Density Perforated Mesh Door |
| Rear Door | Ventilated Mesh Rear Door with Integrated Key Lock |
| Side Panel | Removable Side Panels equipped with Security Cylinder Locks |
| Ventilation | Multi-Ventilation Matrix Design (Accommodates optional top-mounted fan unit) |
| Protection Grade | IP2X |
| Model | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) |
|---|---|---|---|---|
| TB-6618 | 18U | 600 | 600 | 1000 |
| TB-6818 | 18U | 600 | 800 | 1000 |
| TB-6918 | 18U | 600 | 900 | 1000 |
| TB-6A18 | 18U | 600 | 1000 | 1000 |
Другие варианты масштабируемых томов (включая 15U, 22U, 27U, 32U, 42U) и специальные варианты корпоративных корпусов доступны по запросу для удовлетворения специфических инженерных профилей объекта.
