| Тип упаковки: | Полностью собран перед отправкой. |
|---|
Сборный сетевой стоечный шкаф серии TD высотой 18U представляет собой исключительно экономичное и компактное напольное решение, предназначенное для сетевых сред небольших офисов, децентрализованных ИТ-систем и учреждений розничной торговли. Эта стойка высотой 18U, изготовленная из качественной холоднокатаной стали SPCC и оснащенная оптимизированными вертикальными монтажными колоннами толщиной 1,5 мм, обеспечивает надежную физическую структурную целостность при меньшем собственном весе. Благодаря широкому выбору передних дверей, надежным съемным боковым и задним стенкам и интеллектуальным интегрированным каналам управления проводами он обеспечивает плавную интеграцию и доступность текущего обслуживания стандартных 19-дюймовых аппаратных систем.
| Ready for Fast Deployment The floor-standing 18U enclosure is fully pre-assembled before shipping, eliminating site-side logistics assembly tasks and drastically accelerating system startup schedules. |
Economical & Smart Build Utilizes an optimized 1.5mm mounting rail framework paired with 0.8mm structural components, striking an excellent balance between cost efficiency and server setup stability. |
| Versatile Access Configuration Supports both clear tempered glass and high-airflow perforated front door options to smoothly adapt to various equipment monitoring preferences and ventilation requirements. |
Streamlined Wiring Setup Engineered with removable, lockable access panels and clean built-in cable pathways, enabling hassle-free ongoing technical wire adjustments and inspection routines. |

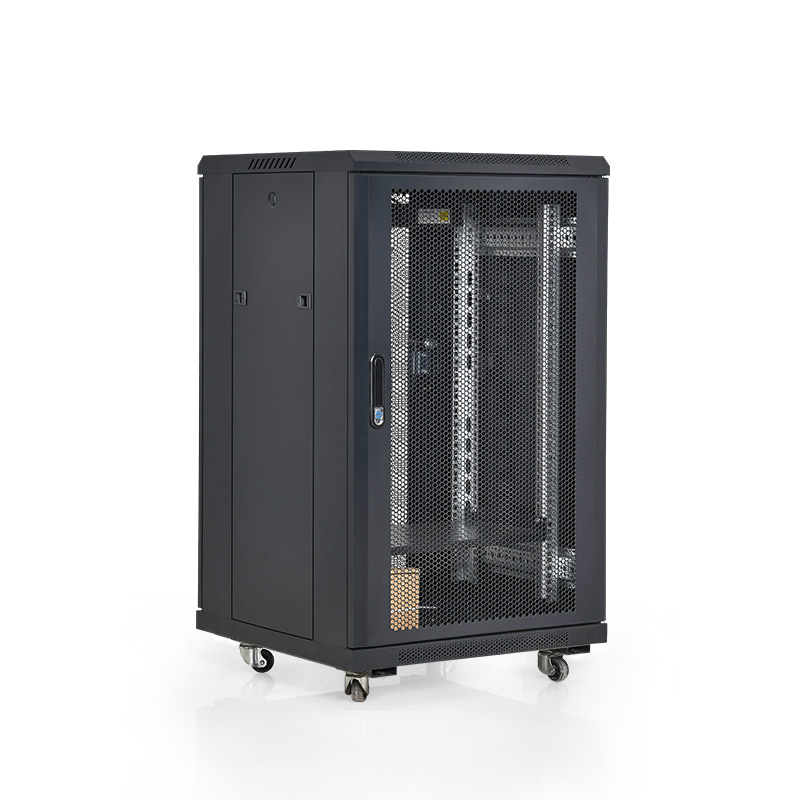

Flexible Front Door Setup
Accommodates a clear tempered glass door for real-time tracking or an alternate high-density airflow mesh door option to boost system ventilation.
|

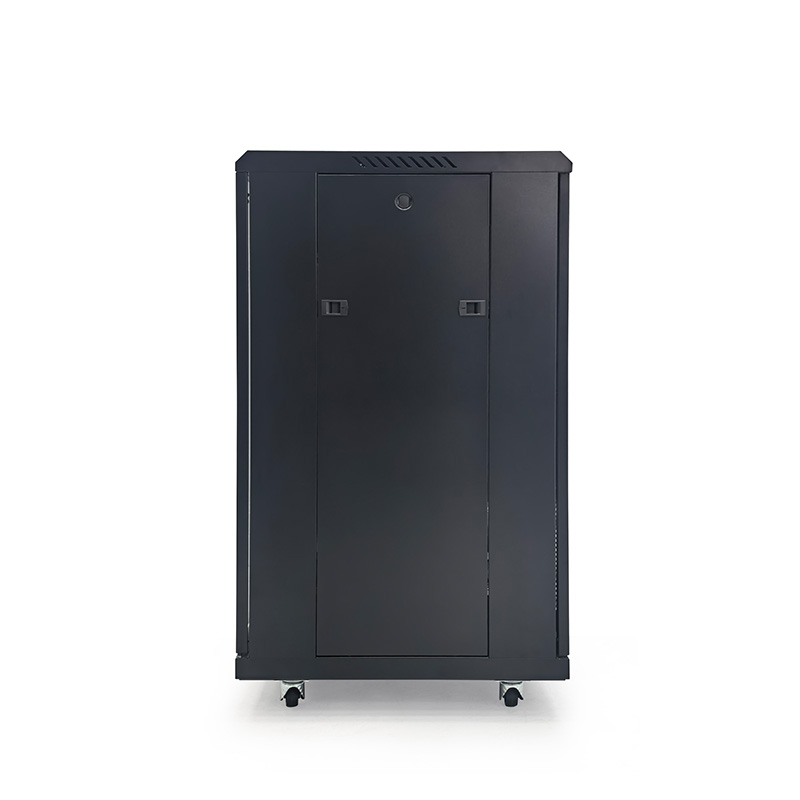

Lockable Fast-Release Panels
Equipped with fast-detaching side and rear panels fitted with security cylinder locks, giving technicians full 360-degree access while preventing tampered entry.
|

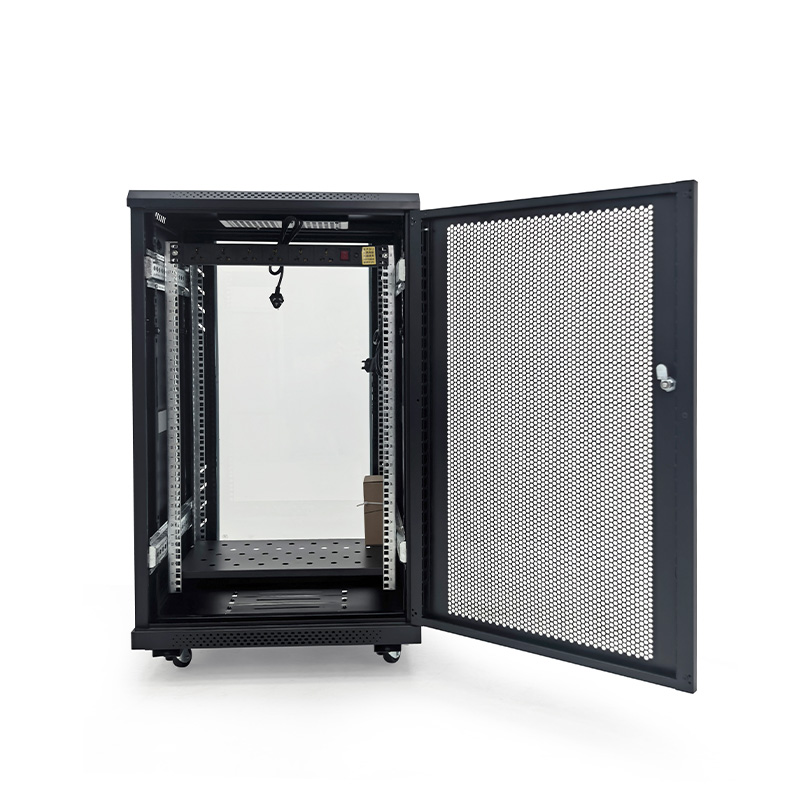

Reinforced Rails & Wire Entry
Features 1.5mm vertical mounting columns with clear U-markings alongside laser-cut entry patterns, creating an organized path for server data cables.
|
| Product Series | TD Series Assembled Network Server Cabinet |
| Capacity | 18U |
| Cabinet Size | W600 x D[600/800/900/1000] x H1000 mm |
| Structure | Factory Pre-Assembled Floor Standing Cabinet (Lighter Weight Frame) |
| Material | SPCC Quality Cold Rolled Steel |
| Mounting Column | 1.5 mm |
| Mounting Cross Member | 0.8 mm |
| Other Material Thickness | 0.8 mm |
| Front Door Options | Tempered Glass Door or Perforated Ventilation Mesh Door |
| Rear Door Options | Ventilated Mesh Rear Access Door with Built-in Cylinder Key Lock |
| Side Panel | Detachable Side Panels equipped with Independent Security Locks |
| Ventilation | Multi-Ventilation Matrix Configuration (Supports optional active fan tray integration) |
| Protection Grade | IP2X |
| Model | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) |
|---|---|---|---|---|
| TD-6618 | 18U | 600 | 600 | 1000 |
| TD-6818 | 18U | 600 | 800 | 1000 |
| TD-6918 | 18U | 600 | 900 | 1000 |
| TD-6A18 | 18U | 600 | 1000 | 1000 |
Другие настраиваемые конфигурации емкости (в том числе 15U, 22U, 27U, 32U, 42U) и динамическая регулировка размеров полностью доступны по запросу, чтобы идеально соответствовать ограничениям локализованной компоновки.
