| option |
| Тип упаковки: | Полностью собран перед отправкой. |
|---|
Сборный сетевой стоечный шкаф серии TB 32U обеспечивает выдающееся сочетание емкости среднего размера, надежности конструкции и тепловой эффективности для современных серверных помещений, коммерческих ИТ-инфраструктур и развертываний облачных сетей. Этот напольный шкаф высотой 32U, изготовленный из холоднокатаной стали премиум-класса SPCC и усиленный вертикальными монтажными колоннами толщиной 2,0 мм, обеспечивает надежную физическую безопасность и превосходную структурную жесткость. Благодаря сетчатой конструкции вентиляции с высоким потоком воздуха, модульным кабельным вводам с лазерной резкой и запираемым быстросъемным боковым панелям он обеспечивает беспроблемную интеграцию оборудования, непрерывную термическую оптимизацию и оптимизированные рабочие процессы обслуживания стандартного 19-дюймового оборудования.
| Ready for Fast Deployment The floor-standing 32U cabinet structure arrives pre-assembled from our factory, minimizing local integration time and greatly accelerating large-scale network site installations. |
Rigid Frame Framework Built with ultra-solid 2.0mm mounting columns and 1.0mm cross member elements to deliver maximum load capacity for mid-sized enterprise networking clusters. |
| Advanced Thermal Airflow Equipped with continuous high-density perforated mesh doors and multi-ventilation structures to facilitate efficient heat dissipation and prevent localized hardware overheating. |
Secure Maintenance Design Features fully removable, lockable quick-release side walls paired with clean cable mapping systems to guarantee straightforward cable management and system upgrades. |

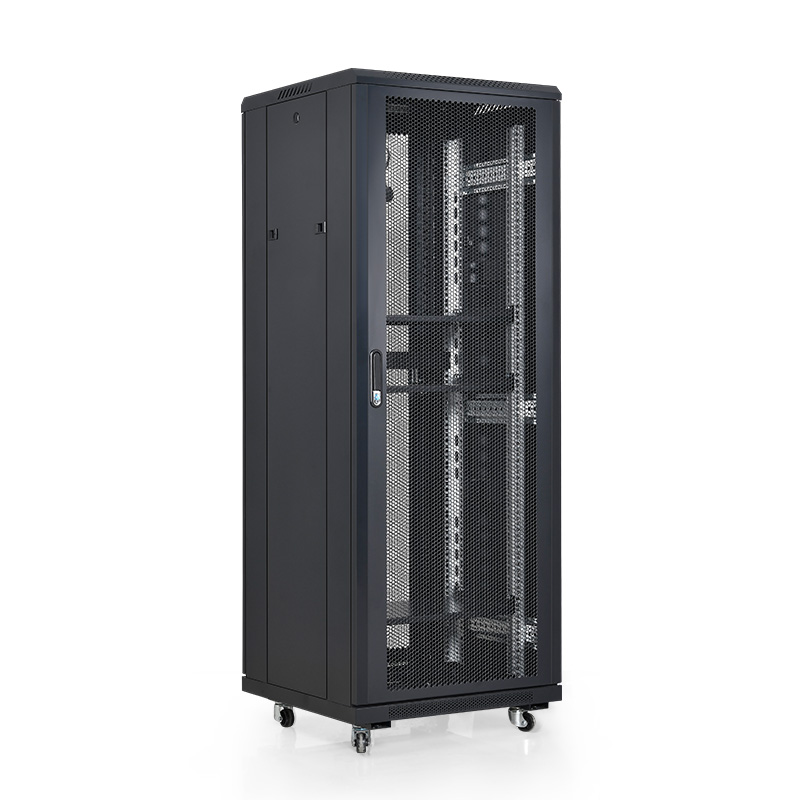

High-Airflow Perforated Mesh
The highly optimized mesh rear door configuration maximizes structural cross-ventilation, facilitating continuous exhaust paths for high-density servers.
|

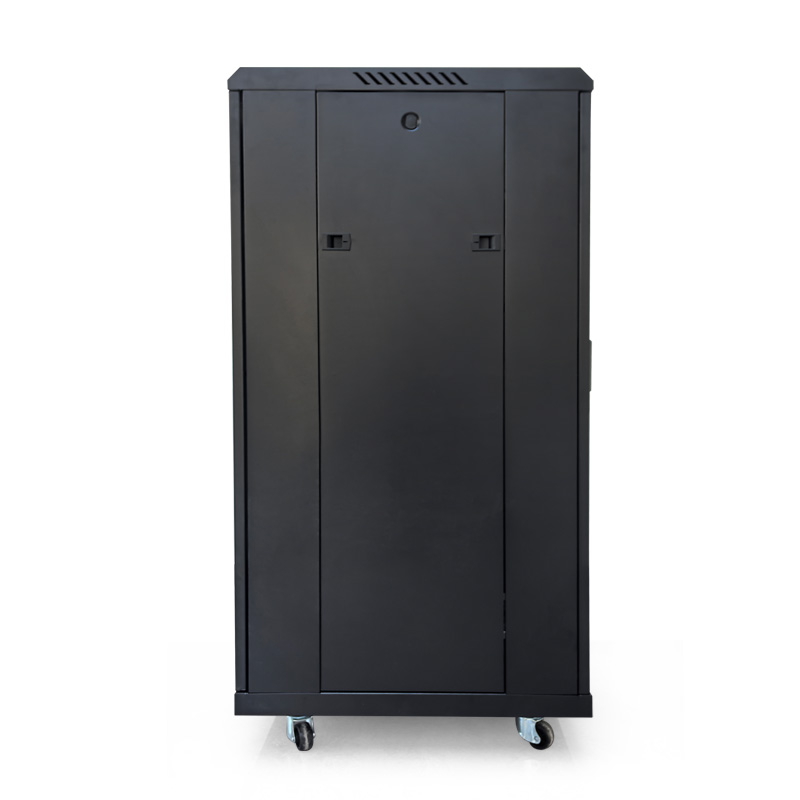

Quick-Release Lockable Panels
Conveniently engineered fast-release side walls with built-in cylinder locks allow rapid technical access while firmly maintaining hardware physical security.
|

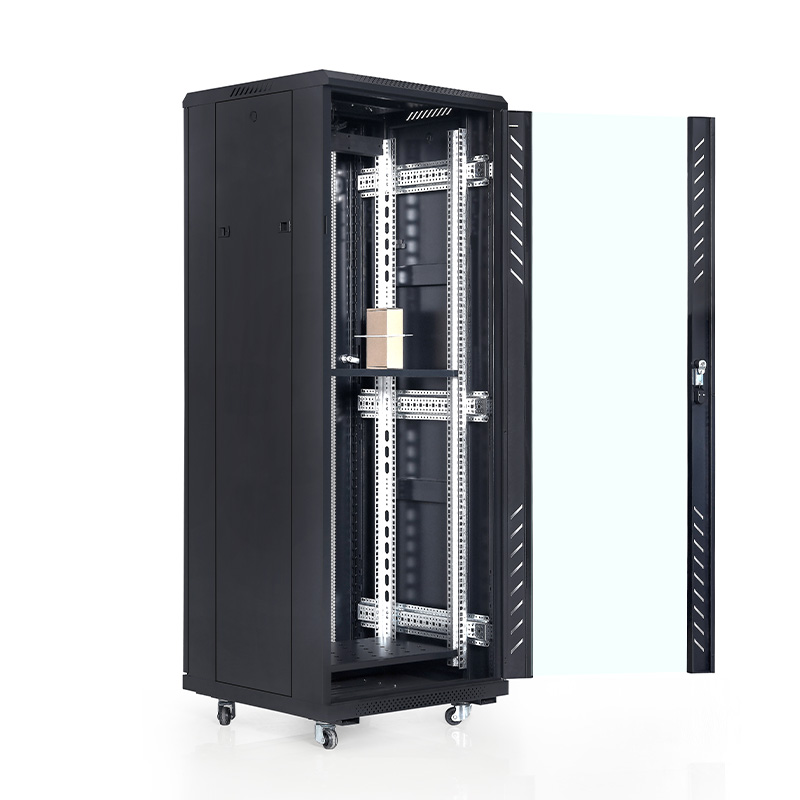

Reinforced Rails & Wire Entry
Heavy-duty 2.0mm U-marked mounting columns work together with precise laser-cut cabling holes, assuring rigid machine hold and flawless data line routing.
|
| Product Series | TB Series Assembled Network Server Cabinet |
| Capacity | 32U |
| Cabinet Size | W600 x D[600/800/900/1000] x H1650 mm |
| Structure | Factory Pre-Assembled Floor Standing Cabinet (Detachable Frame Structure) |
| Material | SPCC Quality Cold Rolled Steel |
| Mounting Column | 2.0 mm |
| Mounting Cross Member | 1.0 mm |
| Other Material Thickness | 1.0 mm |
| Front Door Options | Elegant Tempered Glass Door / High-Density Hexagonal Mesh Door |
| Rear Door Options | High-Airflow Perforated Mesh Rear Door with Secure Lock |
| Side Panel | Removable Side Panels with Quick-Release Fasteners & Security Locks |
| Ventilation | Multi-Ventilation Matrix (Supports optional top-mounted cooling fans) |
| Protection Grade | IP2X |
| Model | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) |
|---|---|---|---|---|
| TB-6632 | 32U | 600 | 600 | 1650 |
| TB-6832 | 32U | 600 | 800 | 1650 |
| TB-6932 | 32U | 600 | 900 | 1650 |
| TB-6A32 | 32U | 600 | 1000 | 1650 |
Другие дополнительные емкости стоек (например, 15U, 18U, 22U, 27U, 36U, 42U) и аппаратные конфигурации от разных производителей полностью настраиваются по запросу для адаптации к параметрам профессионального объекта.
