| Тип упаковки: | Полностью собран перед отправкой. |
|---|
Сборный сетевой стоечный шкаф серии TD высотой 42U представляет собой высокорентабельное напольное решение во всю высоту, предназначенное для корпоративных облачных сетей, коммерческих центров ИТ-серверов и региональных центров телекоммуникационной инфраструктуры. Этот корпус высотой 42U, изготовленный из качественной холоднокатаной стали SPCC со структурированной матрицей вертикальных монтажных направляющих толщиной 1,5 мм, гарантирует значительную выдержку нагрузки машины при более легкой конструкции каркаса. Благодаря гибким дверцам с двойной перфорированной сеткой, регулируемым лоткам для компонентов, надежным запираемым и быстросъемным боковым стенкам и доступным шлюзам для прокладки кабелей он обеспечивает превосходную вентиляцию воздушного потока, гибкую организацию активов и легкую интеграцию 19-дюймового оборудования.
| Ready for Fast Deployment The floor-standing 42U cabinet framework is fully pre-assembled at our factory, eliminating intensive on-site layout installation tasks and accelerating network startup targets. |
Smart Economical Engineering Engineered with optimized 1.5mm vertical rails and 0.8mm structural cross members, ensuring solid support for full-size network hardware arrays while staying budget-friendly. |
| Full Architectural Visibility Designed with complete open-frame interior access options, high-density ventilation panels, and dynamic tray additions to comfortably house multi-vendor server devices. |
Optimized Thermal Management Equipped with an advanced front and rear mesh airflow matrix layout that smoothly facilitates horizontal exhaust and effectively prevents commercial hot-spots. |

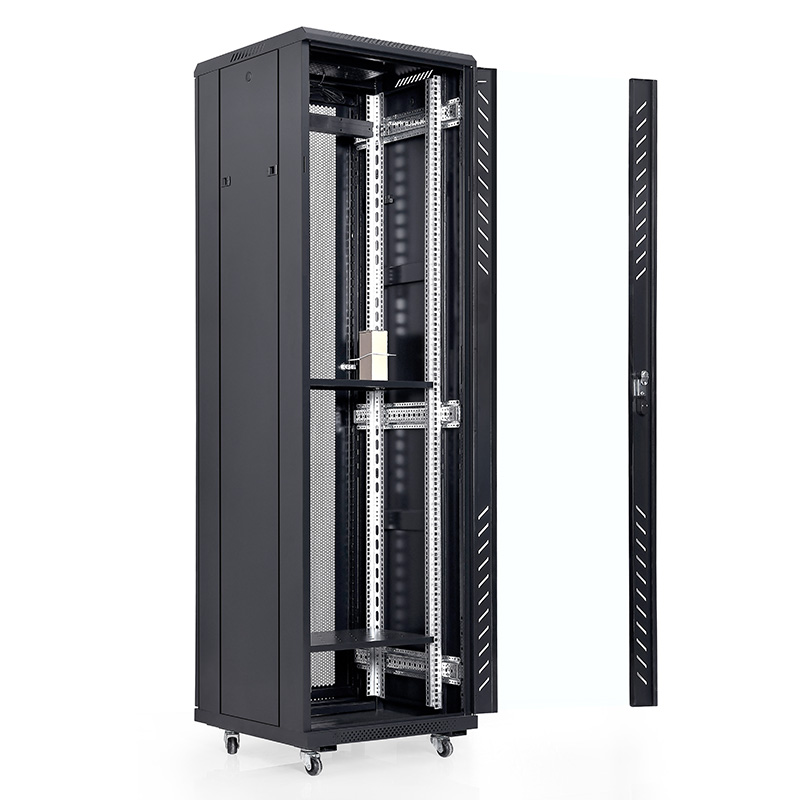

Dual Doors & Full Structure
The highly versatile dual door design pairs with a wide open 42U vertical interior structure, maximizing cross-ventilation flow and streamlining equipment access.
|

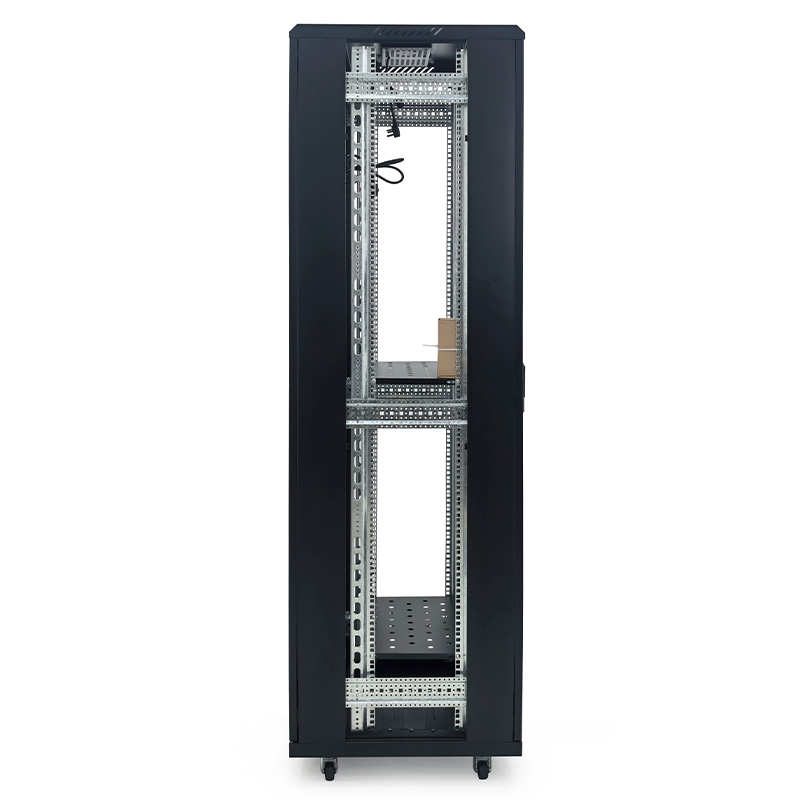

Reinforced Rails & Trays
Optimized 1.5mm U-marked mounting columns support adjustable internal component trays and premium rack accessories, enabling flexible organization for network assets.
|

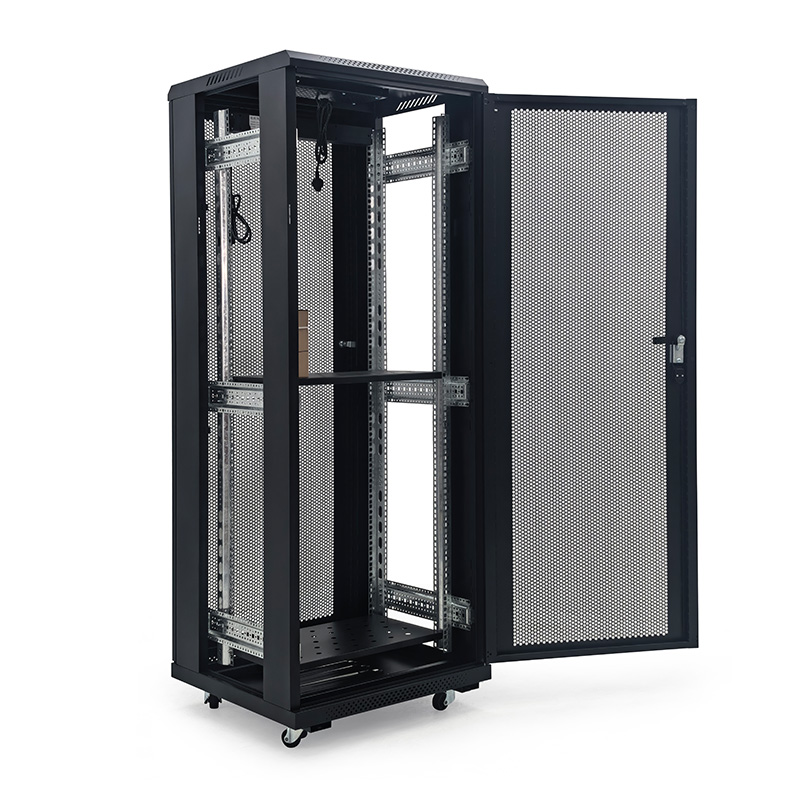

Ventilated Mesh Doors
High-density hexagonal perforated patterns on both front and rear doors maximize constant airflow throughput to sustain ideal internal operation temperatures.
|
| Product Series | TD Series Assembled Network Server Cabinet |
| Capacity | 42U |
| Cabinet Size | W600 x D[600/800/900/1000] x H2000 mm |
| Structure | Factory Pre-Assembled Floor Standing Cabinet (Cost-Effective Framework) |
| Material | SPCC Quality Cold Rolled Steel |
| Mounting Column | 1.5 mm |
| Mounting Cross Member | 0.8 mm |
| Other Material Thickness | 0.8 mm |
| Front Door Options | High-Density Hexagonal Perforated Mesh Door / Tempered Glass Door |
| Rear Door Options | High-Airflow Perforated Mesh Rear Door with Secure Key Lock |
| Side Panel | Removable Side Panels featuring Quick-Release Mechanism & Security Key Locks |
| Ventilation | Multi-Ventilation Matrix Design (Accommodates optional top cooling fan configurations) |
| Protection Grade | IP2X |
| Model | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) |
|---|---|---|---|---|
| TD-6642 | 42U | 600 | 600 | 2000 |
| TD-6842 | 42U | 600 | 800 | 2000 |
| TD-6942 | 42U | 600 | 900 | 2000 |
| TD-6A42 | 42U | 600 | 1000 | 2000 |
Другие масштабируемые конфигурации томов (включая 15U, 18U, 22U, 27U, 32U, 36U) и индивидуальные параметры корпоративного оборудования полностью настраиваются по запросу для адаптации к конкретным параметрам полевого проектирования.
